Wieland Electric Non-incendive barrier modules

July 18, 2016

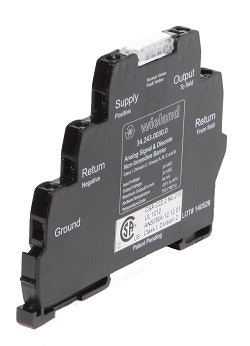

The ASD-NIB non-incendive barrier module is suitable for almost any type of signal, enabling engineers to eliminate the explosion-proof enclosures and conduit in Class I, Div. 2 environments

The ASD-NIB non-incendive barrier module is suitable for almost any type of signal, enabling engineers to eliminate the explosion-proof enclosures and conduit in Class I, Div. 2 environments. It is designed to minimize the risk of ignition on the module’s load side by providing an electrical barrier between control devices and equipment installed in hazardous environments. This enables standard wiring practices to be used to connect to end devices in the field. The barrier is 6.2 mm wide and designed to connect single-channel analog or discrete signal wires from 24 – 12 AWG. It has a nominal rating of 24 Vdc/35 mA.
