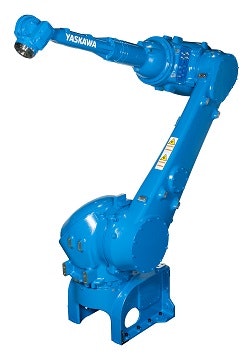

The high-speed, six-axis MHP45L handling robot is factory mutual- (FM-) approved for Class I, Div. 1 use in hazardous environments. Featuring a wide motion range, this robot is well-suited for transferring large workpieces while avoiding interference with paint robots and other peripheral equipment. It can streamline automated paint line layouts by eliminating the need for dedicated part transfer. The robot offers a 45-kg payload capacity, as well as high moment and inertia ratings for accommodating large, heavy workpieces. It features a 2,850-mm horizontal reach, 5,095-mm vertical reach and ±0.07-mm repeatability, easily processing multiple parts in various sizes. Cables and air lines are routed through the robot base to upper arm to increase cable life, enhance safety and reduce teaching time.
