Universal strain gage I/O module for PLC applications
Universal Strain Gage I/O Module

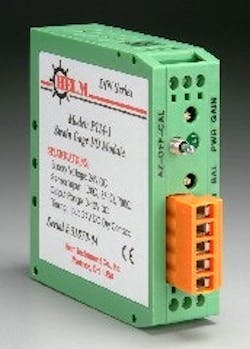

PTM-1 module is a universal single channel strain gage input module for PLC applications. The module provides both track and peak outputs and can be used with industry standard strain gage load cells and transducers having full bridge inputs from 175-700 ohm. This device is designed for DIN rail mounting and supplies a 0-10 volt DC output for use with operator interface displays.
