Icotek Hybrid cable entry

With the KT-M cable grommet, built-in plugs and installation jacks are integrated directly into KEL, KEL-U or KEL-ER cable entry strips
April 6, 2019

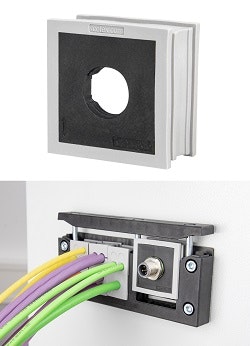

With the KT-M cable grommet, built-in plugs and installation jacks are integrated directly into KEL, KEL-U or KEL-ER cable entry strips. The grommet is suitable for interfacing to signal, data, power or hybrid connectors by screwing them into the threads. Even hose fittings or pressure compensation elements can be easily screwed to the grommet. The product is available with inner threads of M12 x 1.0, M16 x 1.5, M20 x 1.5 and M25 x 1.5. Alternatively, a blind grommet is available for special solutions. The integrated polyamide body is completely closed on one side. The effective area is 24 x 24 mm, and the wall thickness is 6 mm.
