C3controls dc miniature circuit breakers

Feb. 15, 2024

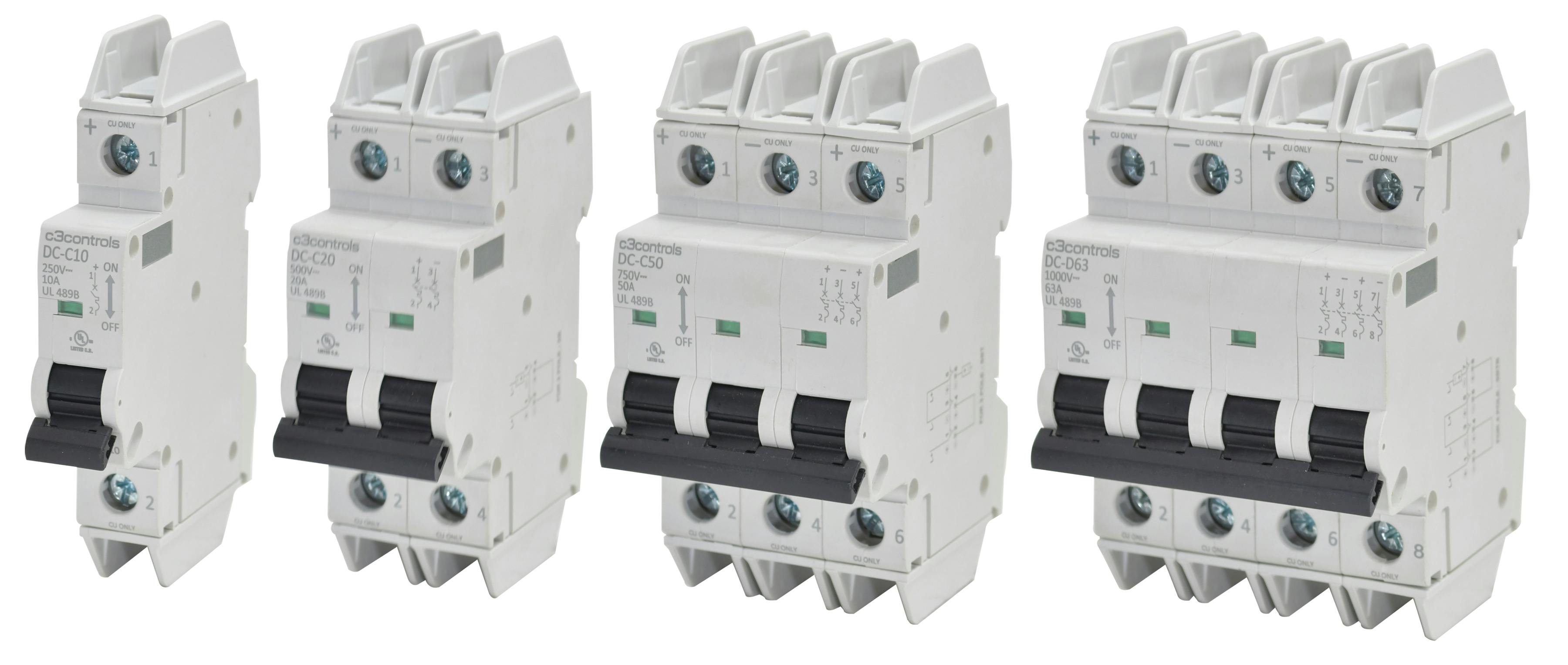

C3controls’ 1110 dc miniature circuit breakers (MCBs) feature a 250 Vdc per-pole rating. With current ratings from 0.5 A to 63 A, the devices provide short circuit and overload protection. They are UL 489B listed for photovoltaic renewable energy system applications. Additional target applications include EV charging stations, energy transmission and distribution networks and industrial control, such as powering the large motors used in robotic, automation and material conveyance installations. With available shorting link variations connecting up to four poles in a series, end users can get 500 Vdc, 750 Vdc and 1,000 Vdc ratings of protection from a device pre-wired at the factory. The MCBs are available in one-, two-, three-, and four-pole constructions, C or D trip curves, and include both magnetic and thermal elements for overload and short circuit protection. Short-circuit current rating is 10 kA on all constructions. The 1110 dc miniature circuit breaker is designed to be compact and easy to install with 17.5 mm width per pole construction to reduce panel size, and it mounts onto 35 mm DIN rail. Limited lifetime warranty, guaranteed same-day shipping and a 90-day money-back guarantee are included. Free samples are available.

c3controls / www.c3controls.com
