SHARC universal IoT sensor adapter

March 26, 2024

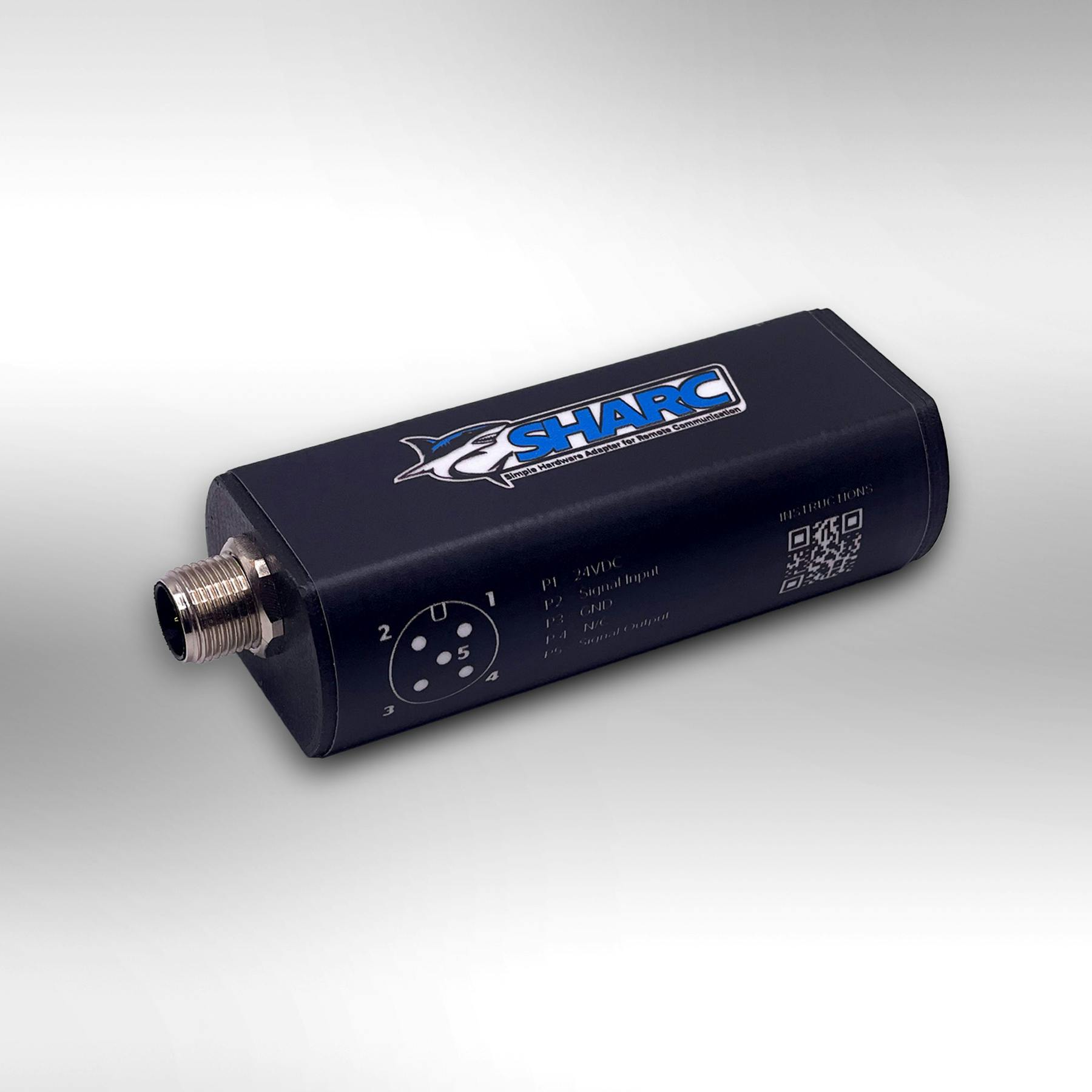

The SHARC IoT sensor adapter is designed to stream data from industrial sensors via the MQTT protocol. The A-coded five-pin M12 connector accepts PNP, NPN, 0-10 V and 4-20 mA signal inputs in a single channel. The SHARC and sensor can be powered with Power-over-Ethernet (PoE) or an existing 24 Vdc supply. Data is transmitted to business systems over wired Ethernet, WiFi or Bluetooth. A range of onboard configurable signal processing options accommodates encoder inputs, counters, switches and scaling of analog signals, allowing simple integration into the Unified Namespace.
