What has one arm and can see?

Aug. 1, 2018
3D machine vision systems give robots the ability to act without the need for CAD data

Remember the gold or blue dress debate? The human eye is undoubtedly impressive, but it has some limitations. Luckily, machine vision is rapidly taking responsibility for inspection, validation and motion control processes.

Robots bring the most value to dull, repetitive and mundane tasks. Pick-and-place applications, for example, require little skill. However, these tasks do put repetitive strain on the employee. That said, the dexterity and accuracy needed to pick an item out of a bin and place it onto a conveyor cannot be taken for granted—not just any old robot can do this job.

[javascriptSnippet ]

Automating this process becomes challenging when you consider the random assortment of parts in a bin, a common challenge for food-and-beverage manufacturing. How can a robot decipher the most logical order to pick these items up in, and what if these items are non-uniform? Bananas and apples are a prime example. CAD data drawings can only go so far in defining a product, and, in some cases, like pieces of fruit, CAD data simply doesn’t exist.

What is machine vision?

3D machine vision describes the automatic extraction of information from digital images without the need for CAD data. A typical machine-vision environment would be a manufacturing production line where hundreds of products are presented in front of a 3D camera.

Using this 3D camera—or several cameras, in some instances—manufacturers can carry out imaging-based automatic analysis and inspection to inform the robot guidance. Essentially, it provides eyes for our traditional robot arm.

The eyes have it

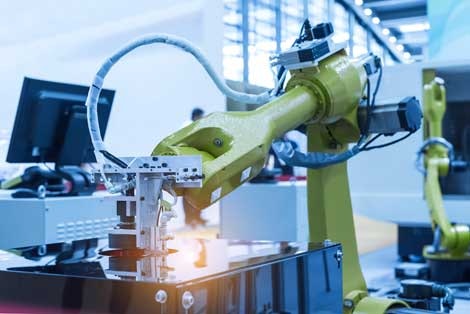

Figure 1: Vision systems provide eyes to guide the robot arm.

Product inspection is a worthwhile application of machine vision systems. By eliminating costly error in quality, customer satisfaction will rise. Using automation, any deviations and errors in manufacturing are automatically detected and relayed to the proper personnel, so that the necessary actions can take place. This, of course, has huge implications for traceability as each product can be logged, as necessary.

One fundamental aspect of traceability in the food industry is hazard analysis critical control points (HACCP). By using a vision system to monitor the product quality along the assembly line, preventing food hazards through HACCP is a breeze. The critical limits of each control point can be established and programmed in the vision system. Using this method, any violations, such as a stray bandage, can be detected and dealt with automatically.

Machine vision systems come in many different forms to suit the specific application. Let’s take dispensing liquids as another example. Using one or more sensors to take images of the bottles, the position and quality of each bottle is analyzed before the liquid is dispensed accurately and consistently. Some vision systems are even able to use thermal imaging to monitor the temperature of the liquid.

Verification processes can also be delegated to a machine vision system. Consider a bottled water production line as an example. When it comes to capping bottles, there’s a lot that can go wrong—from misaligned lids and broken tamper rings to missing dust caps. Using machine vision, the camera can instantly detect and recognize these issues as they occur.

The future of machine vision

Machine-vision systems are being rapidly adopted across the United States, in favor of systems relying heavily on CAD data. The growing market is driven by the rise and popularity of smart cameras, improved ease of use and the gradual decline in cost.

Human eyes will always have their role in production. Whether they are required to interpret data via a human-machine interface (HMI) or assess problems flagged up by vision systems. Using this technology, human workers will be promoted from front-line inspectors to high-value investigators, even if we do struggle to decipher whether a dress is gold or blue.

It was gold, by the way.

ALSO READ: How machine vision systems and robots have influenced each other

About the author: Jonathan Wilkins
Jonathan Wilkins is marketing director at EU Automation. Contact him at [email protected].
