Cincoze DS-1300 embedded computers

Jan. 13, 2023

Cincoze Rugged Computing - Diamond product line DS-1300 series is a workstation performance and PCIe-expandable embedded computer with extreme processing capabilities, dual PCI/PCIe expansion slots and industrial-grade protections. The solution is designed to help enable vision-guided robots (VGRs).

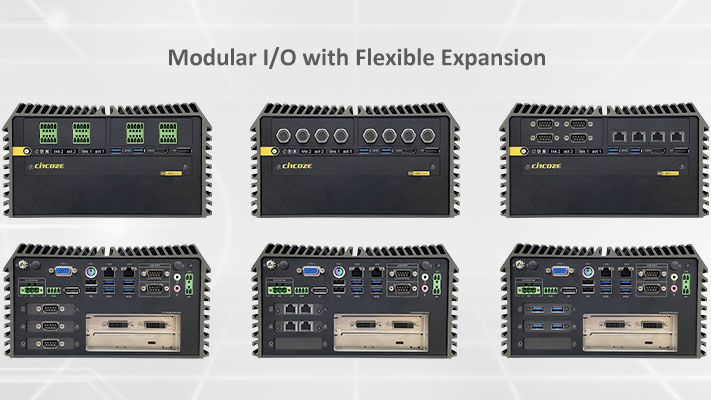

The DS-1300 series supports a 10th generation Intel Xeon/Core (Comet Lake-S) CPU (up to 10-core 80W), up to 64GB of memory, and an M.2 NVMe slot. The DS-1300 series has a selection of native high-speed I/O, such as 2× GbE LAN, 6× USB3.2, that connect to the cameras and sensors required by a VGR for high-speed high-resolution data transmission. Cincoze modules provide further I/O or function expansion options, such as GbE LAN, 10GbE LAN, DIO, COM, USB 3.2, or PoE. The built-in Mini PCIe expansion slot can be used with commercially available Wi-Fi/4G/GPS modules for wireless communication and upload of production information to the central control center in real-time.

All DS-1300 models are designed to withstand shock and vibration, meeting the industry-leading US military equipment inspection standard (MIL-STD-810G), and feature protection mechanisms such as wide temperature (-40–70°C) and wide voltage (9–48 VDC) support, and overvoltage, overcurrent, and ESD protection.
