Danfoss Drives' VLT Micro Drives

July 22, 2009
Mirco Drive

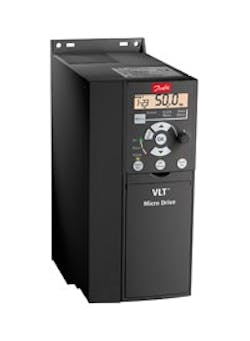

MICRO DRIVEVLT micro drive is available in an M4 frame size covering the three-phase 380-480 Vac, 15-20 hp range. The M4 is 250 mm tall (292 mm with flange) x 125 mm wide x 241 mm deep. They feature conformal coated PCBs per IEC 60721-3-3, class 3C3, and provide serial communication via RS-485 Modbus RTU and FC protocols. A detachable local control panel (LCP) with or without potentiometer, an LCP copy function and a panel-front mounting kit for the LCPare included. The micro drives also are available in single-phase 200-240 Vac, 0.25-2 hp; three-phase 200-240 Vac, ⅓-2 hp; and three-phase 380-480 Vac, 0.5-3 hp power range configurations.
