Modular gantry milling machine offers CNC control options

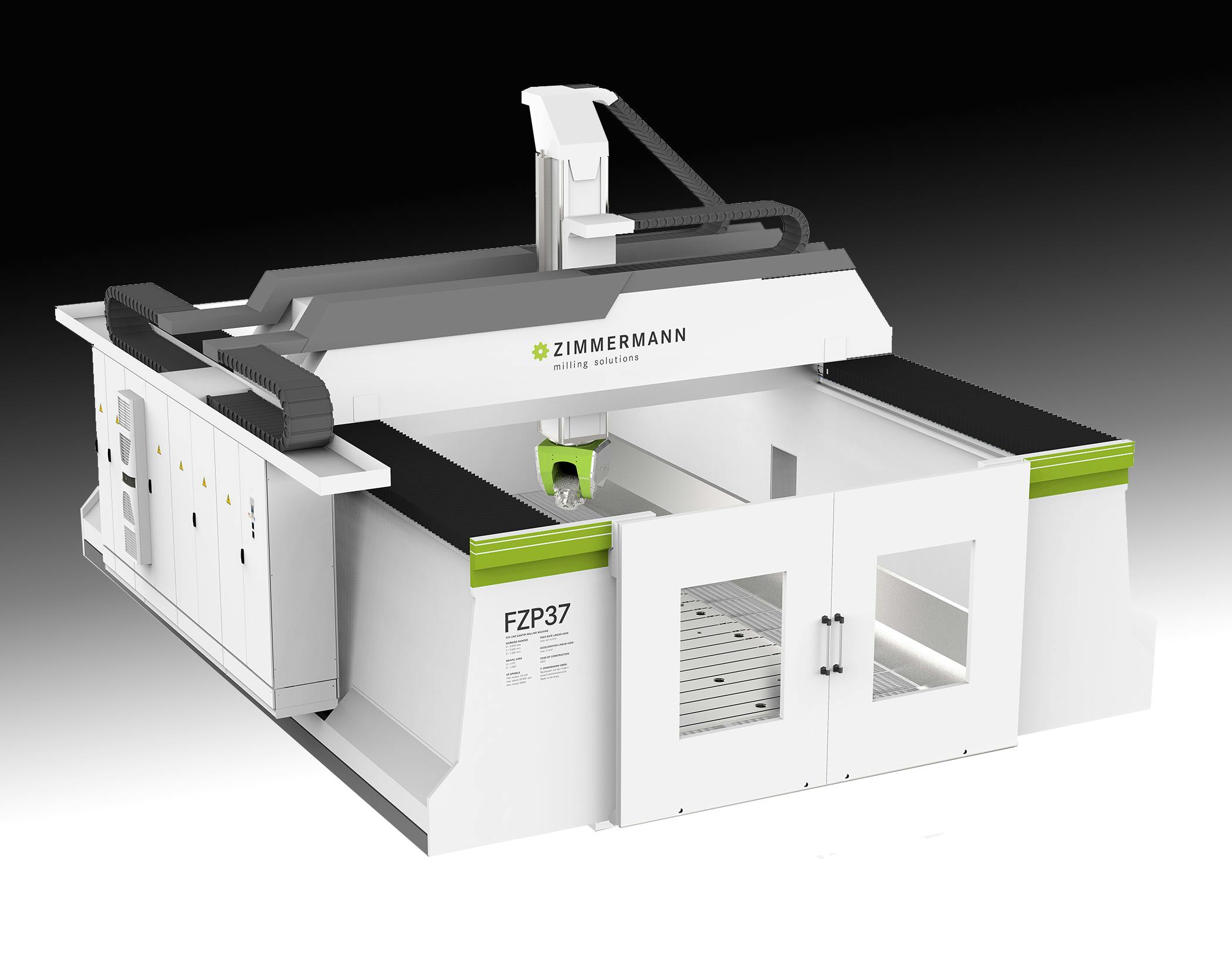

Zimmermann’s FZP37 gantry milling machine has a modular design for different operating ranges and the use of different brands of CNC controls. Its gantry construction makes it possible to machine components of all kinds. The gantry milling machine has a working range from 118 inches to 1,575 inches in the x axis, 98 inches to 236 inches in the y axis and 49 inches to 118 inches in the z axis.

The machine table is anchored to the machine base to provide a stable cutting surface for material. The milling process is designed to be precise, regardless of weight and size.

Its rigid center lead portal, the cross- and z-slides and the dynamic milling heads are designed for a consistent, efficient milling process. Users can choose from either a Heidenhain TNC 7 or a Sinumerik One CNC control. Several milling heads are offered on the machine to suit a variety of applications.

Thermal stability and structural rigidity make these machines ready for aerospace and automotive industries. The five/six-axis of the FZP37 is also suitable for machining workpieces in additional industries.

Optional equipment includes a tool probe, tool measuring system, work area cover, tool changer, chip conveyor and a mist/dust extraction system. Also available are lubricant cooling, minimum quantity lubrication, vacuum system and a dust extraction bell.
