Carlo Gavazzi extra-short M12 inductive proximity sensors

Jan. 5, 2017
Ultra-compact M12 sensors work where space is limited.

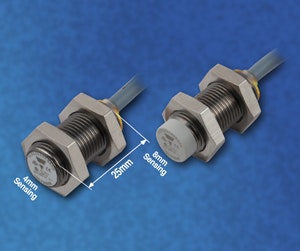

This addition to the ICB Series family of inductive proximity sensors, the ICB12S extra-short inductive proximity sensors has a thread length of only 23mm, and housing lengths as short as 25mm. These ultra-compact M12 sensors work where space is limited. The sensors inherit many of the same attributes of its longer ICB Series sensors, including IP67 nickel-plated brass housings, extended sensing distances of up to 8mm, status LEDs which are clearly visible from any direction, a wide operating temperature range, a high switching frequency, protection from short circuits and overloads and a microcontroller-based design.

The sensor also has an operating frequency up to 2000 Hz, an operating temperature range from -25 to +80°C (-13 to +176°F), NPN or PNP, NO or NC output, 2m oil resistant PVC cable and is CE, cULus and cCSAus approved.
