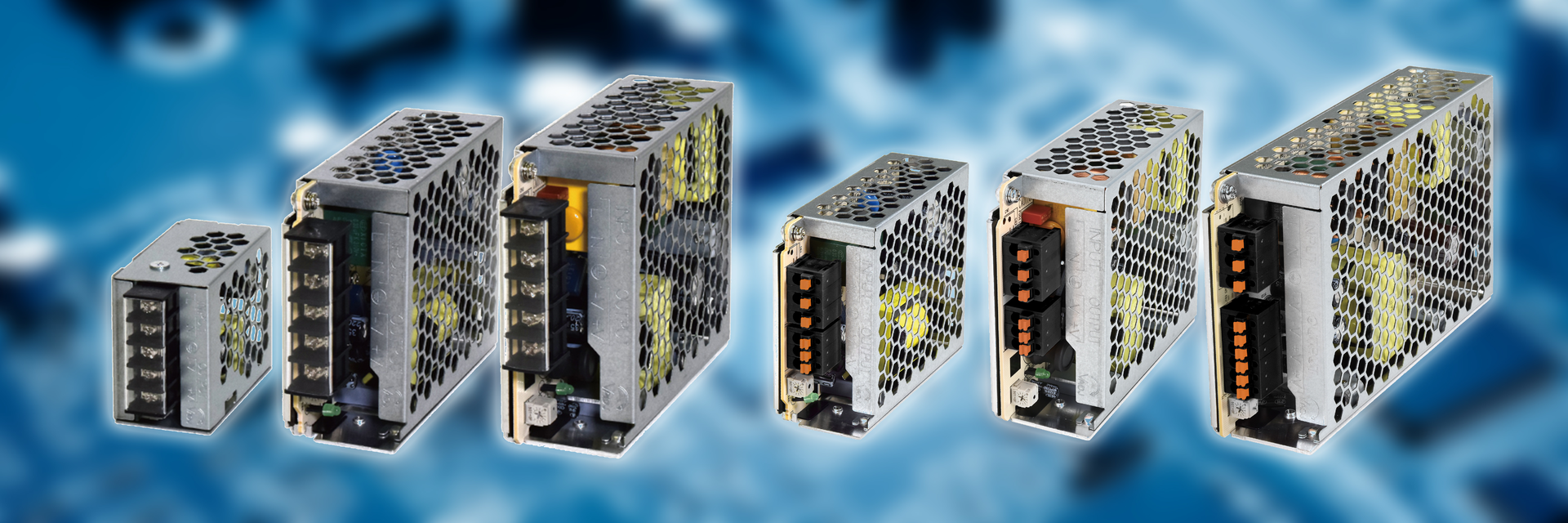

PS3V series switching power supplies

PS3V series switching power supplies are designed to provide an excellent price/performance ratio and add features like push-in connections for simplified installation. The PS3V power supply family accepts a wide input voltage range from 85 to 264 Vac, and it provides an output of 5, 12, and 24 Vdc with capacities ranging from 15 to 150 W, both depending on the model. Output voltage is user-adjustable ±10%, and the 24-Vdc versions deliver efficiencies ranging from 83 to 88%. A robust yet compact metal housing protects the PS3V power supply, and it can be mounted in four orientations, by direct panel mount or DIN rail bracket. Mounting brackets are the same as for the previous PS3X series. Models are available with traditional screw terminals or with push-in terminals for rapid one-step wiring. A wide operating temperature range from -25 to +70 °C ensures these power supplies work in challenging environments.
