Festo ultra-compact pneumatic cylinders

Oct. 17, 2022

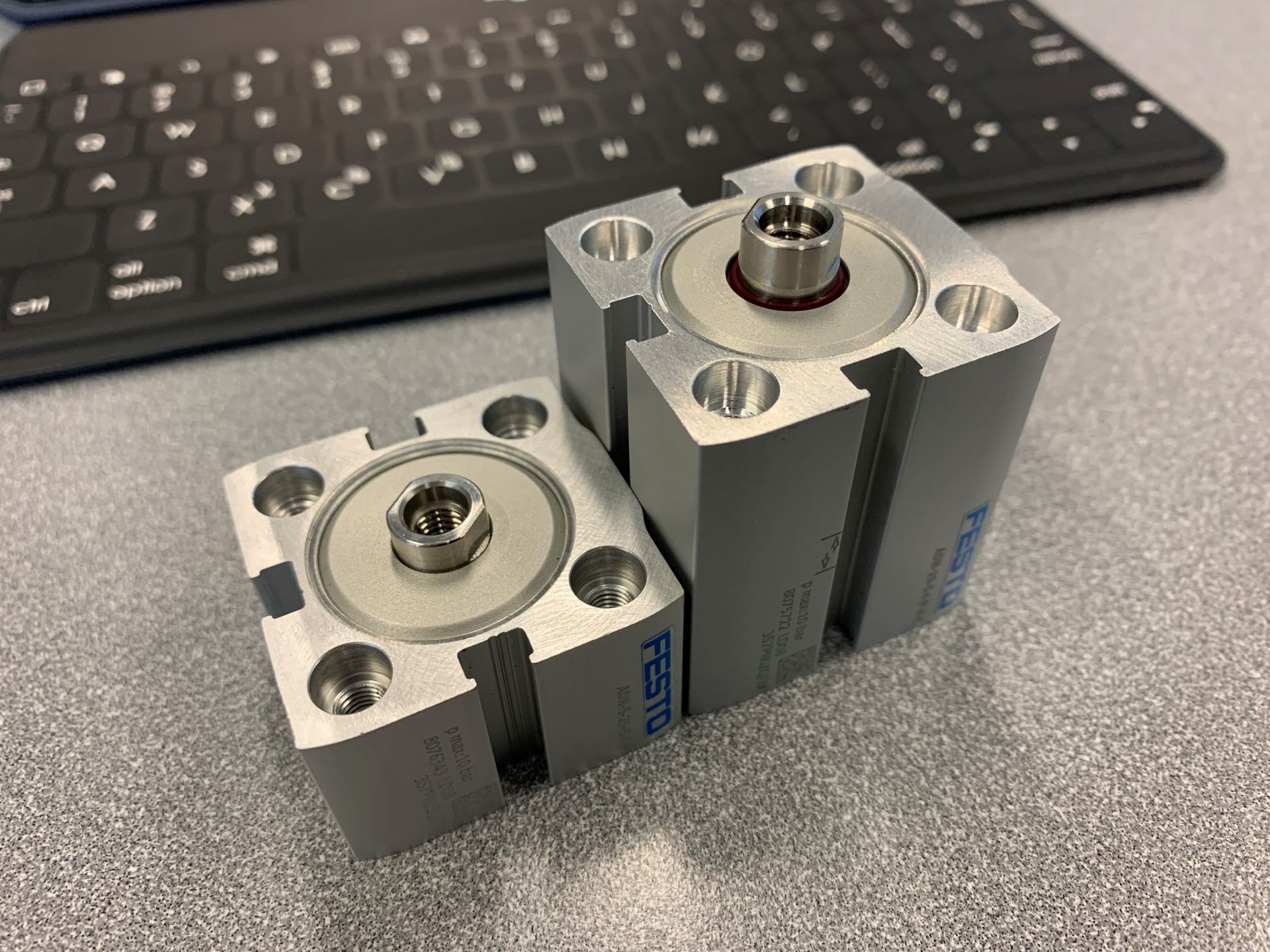

ADN-S is a line of ultra-compact pneumatic cylinders for a smaller footprint, lighter and higher-performing machines. Because their case material does not contain copper, zinc or nickel as main constituents, ADN-S cylinders are recommended for use in production facilities manufacturing lithium-ion batteries. These cylinders are also recommended for electronic assembly and testing and are suitable for use in moderately corrosive environments. There are two ADN-S body types. The slim-design ADN-S requires only 6 to 10 mm installation space, while short-design cylinders fit in a 12 to 63 mm space. Units can be ordered with male or female thread piston rods for more flexibility in connection and with or without cushioning. These actuators feature a magnetic piston for position sensing and laser-etched case marking to make proximity sensor installation faster. Piston diameters range from 6 to 63 mm and stroke length from 5 to 50 mm.
